AstroHood III

Endständige-Gehäuse - HEPA/ULPA FILTER

zurück zur Übersicht

Produktübersicht


  • Designed for the use in cleanrooms
  • Filter classes H14, U15, U16 and U17 to EN1822:2009
  • Lightweight and easy to install
  • Hermetically closed construction
  • Knife edge, gel seal and dry seal execution
  • Filters for ultra clean environments

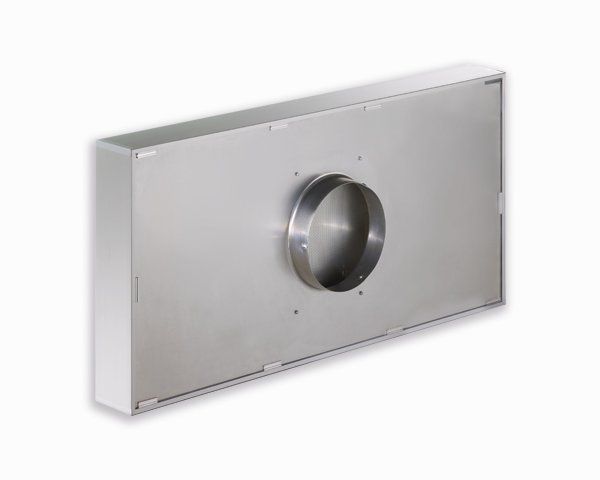

The AAF AstroHood III TM filter is a self-contained module, designed for use in turbulent mixing and laminar airflow cleanroom areas.



  • BRANCHEN

        Gewerbliche Gebäude

        Museen

        Gesundheitswesen

        Nahrungsmittel und Getränke

        Viehzucht

        Data-Center

  • ANWENDUNGEN

    The AstroHood II housings are designed to accommodate either gel seal HEPA/ULPA filters with depths of 80 mm (Type PHG), or gasket seal HEPA/ULPA filters with depths of 69 mm (Type CM). Depending on the application, filters with efficiencies of 99,995% (at MPPS), or optional ULPA filters with an efficiency of 99,9995% (at MPPS) or better can be used. For ease of installation and maintenance, the AstroHood II design enables filter installation and exchange from the room side. The housings have a single knife edge that forms an airtight seal as the knife edge interfaces with the gel (Type PHG), respectively the gasket (Type CM).

Spezifikationen

Neuer Text

Downloads

AAF_AstroHood S III CSht AFP CS 107A

AAF_Product_Quick_Reference_Guide__EN.pdf
